SPECIFICATIONS

Brand Name: CENAVA

CPU: MTK6771/MTK8781

Camera: Second Webcam,Front Webcam

Cell Capacity: 10000mAh,3.8V, Support custom large battery(20000mAh)

Certification: CE,RoHS,FCC

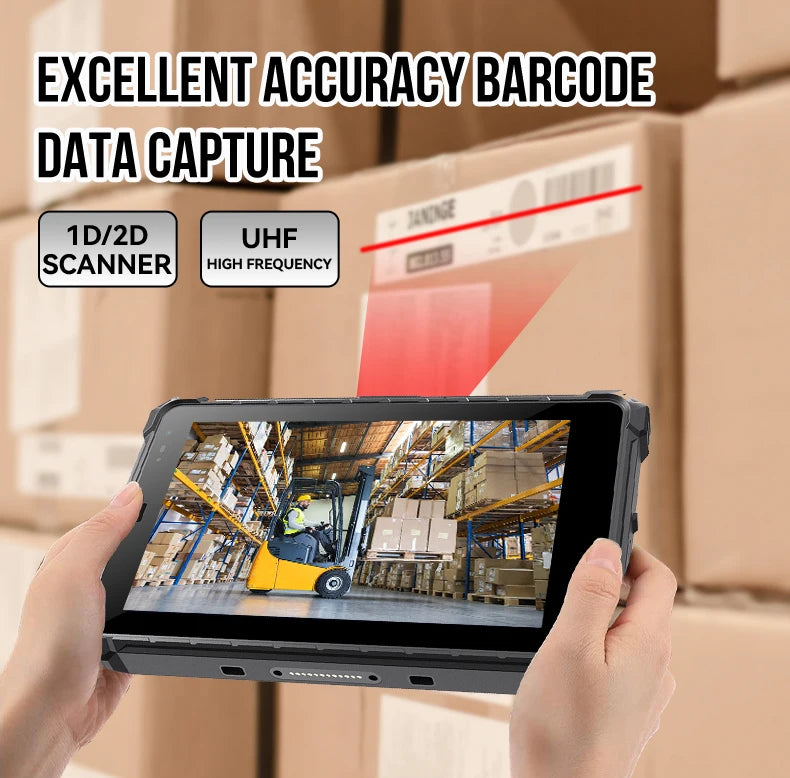

Custom Function: 1D/2D Scanner, ID card identification, UHF, LF, Fingerprint

Display Resolution: 1920x1200

Display Size: 10.1"

Display refresh rate in hertz: 60

Explosion-proofversion (optional): EX Class II Petrochemical Explosion-Proof,KA Class I Mining Safety Explosion-Proof,MA Class I Coal Mine Safety Explosion-Proof

Extend Port: USB,Type-C,DC Jack,TF card

Feature: Dual Cameras

Front Webcam Pixels: 8MP

High-concerned chemical: none

Intercom hand microphone (customized function): Customized optional aviation plug or serial port connection

Item Type: Tablet PC

Memory Capacity: 4GB

NFC: I²C interface, 13.56MHZ supports 14443A/14443B/15693 and other protocols

Net Weight: >500g

Network Communiction: 4G

Operating System: Android 10.0

Origin: Mainland China

Package: Yes

Panel Type: IPS

Positioning: GPS, Beidou, Galileo, GLONASS, Optional Single-System BeiDou Positioning

Processor Core: Octa Core

Processor Manufacture: MTK

Processor Model: others

RAM/ROM: 8+128GB/12+256GB

Resolution: IPS 1280*800/1920*1200

Screen Brightness: 700cd/m², can be customized1000cd/m²

Screen Size: 10.1inch

Second Webcam Pixels: Other

Supporting Language: English,Russian,Spanish,Swedish,Turkish,Portuguese,Italian,German,Chinese,French,Japanese,Polish,Ukrainian,Greek,Hebrew

Tablet Storage Capacity: 64 GB

Wireless Network: WiFi 5, BT5.2, 2G/3G/4G

Professional Supplier of Inteligentle Hardware

80+ Countries and Regions

1000+ Global Clients

80+ Palented and Custom Mold Products

100K+Units Shipped

What We Solve For You

All docs & materials ready

Selling points & compliance advice

Spec clarification to cut costs

On-site testing for feasibility

Custom solutions to reduce risks

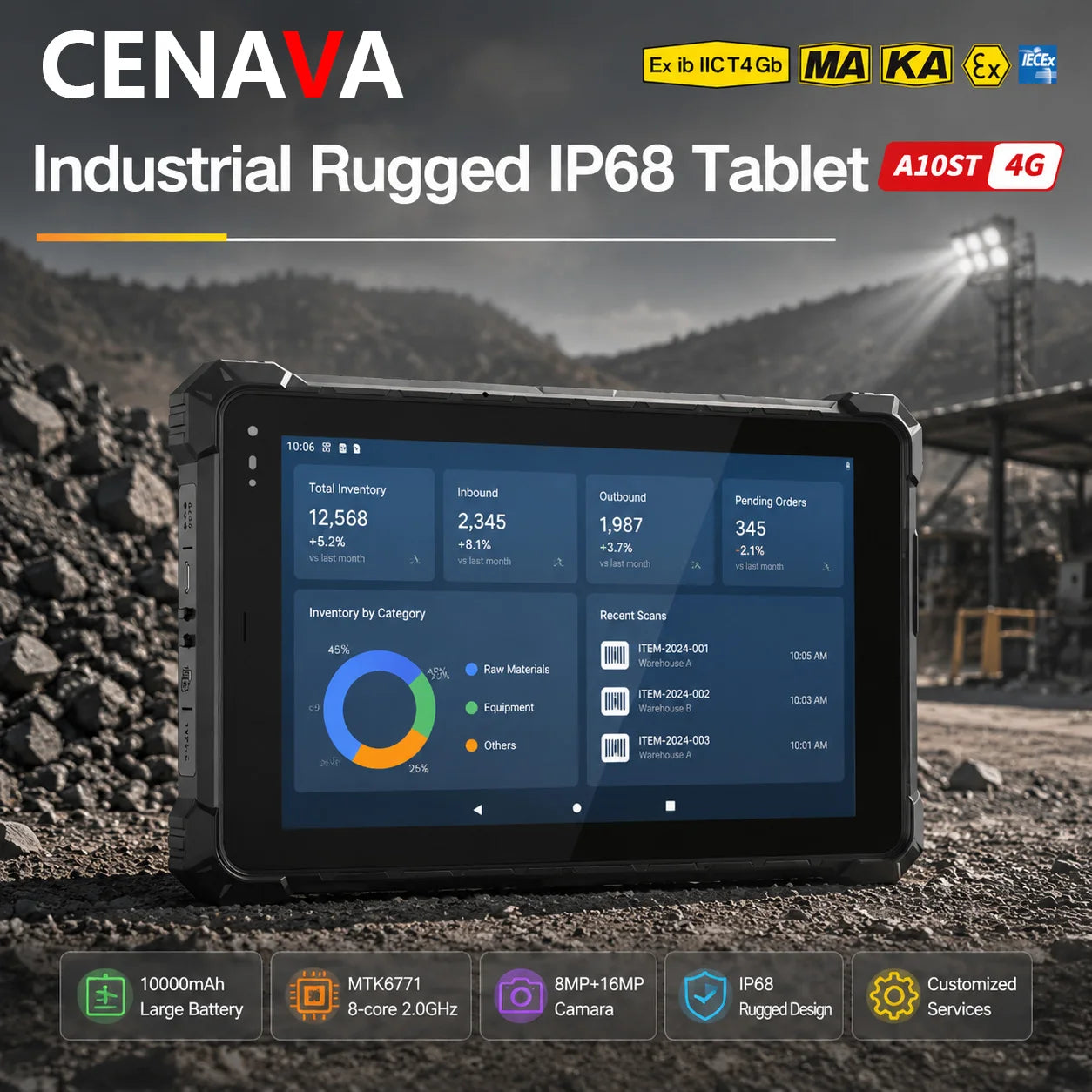

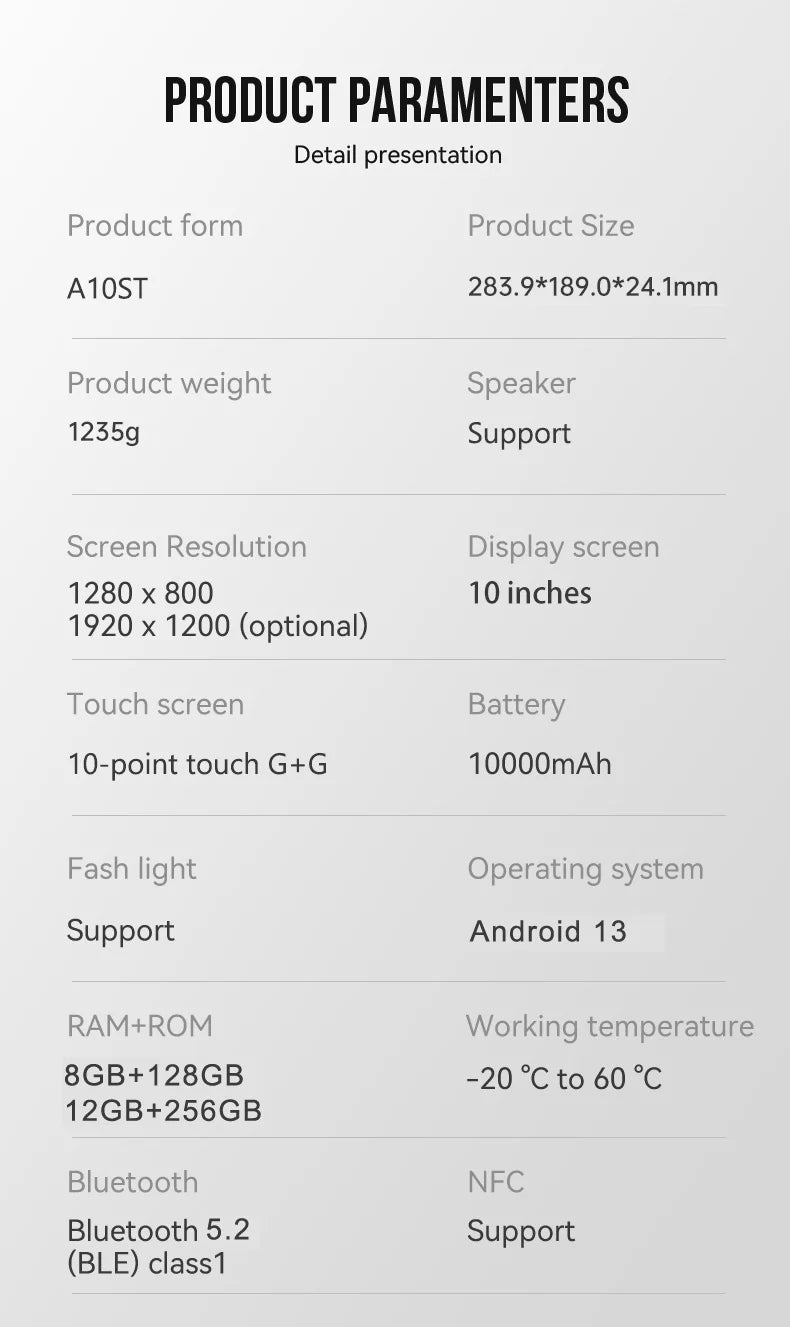

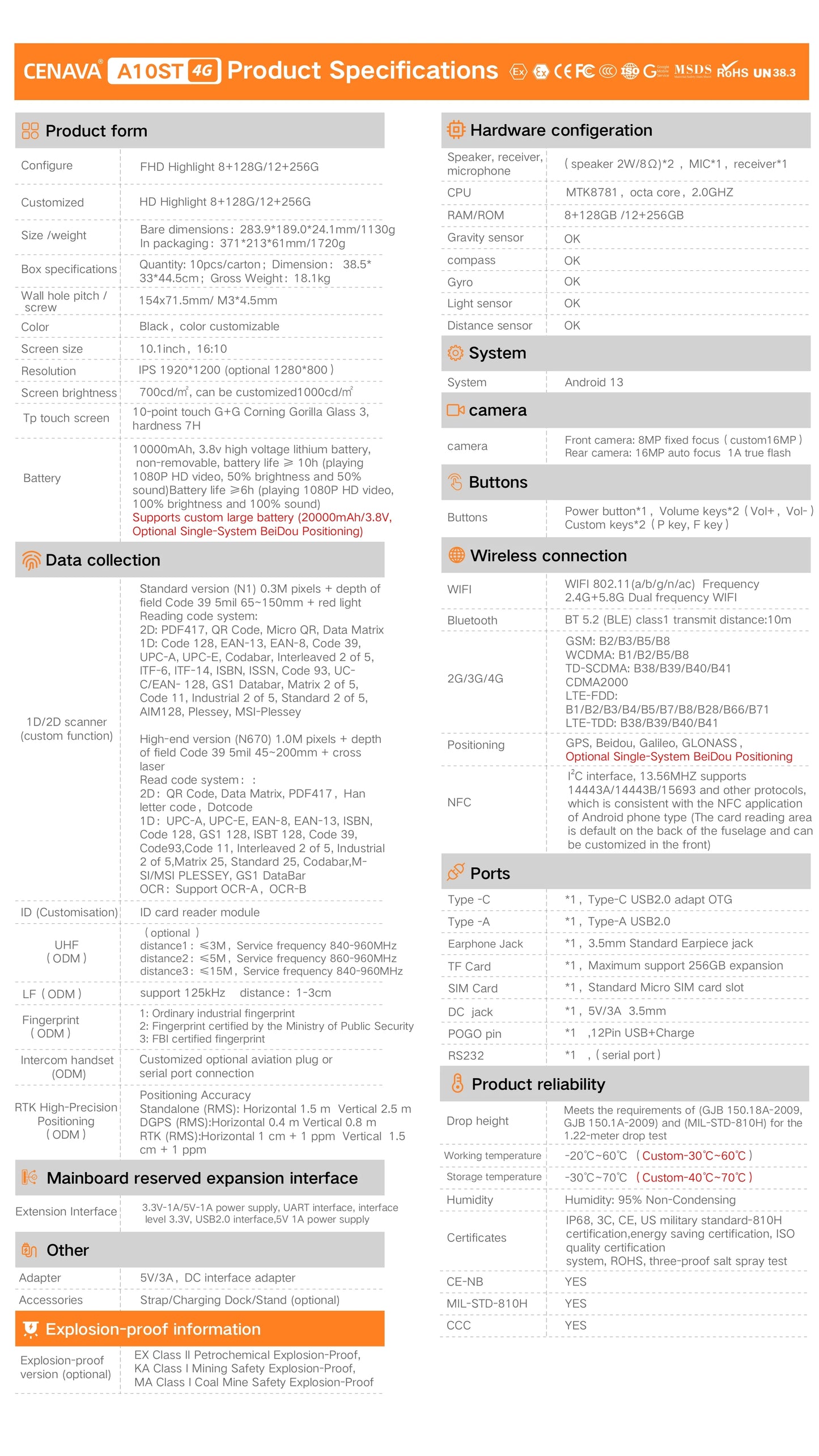

A10ST Rugged Tablet Product Specifications

Cetifications

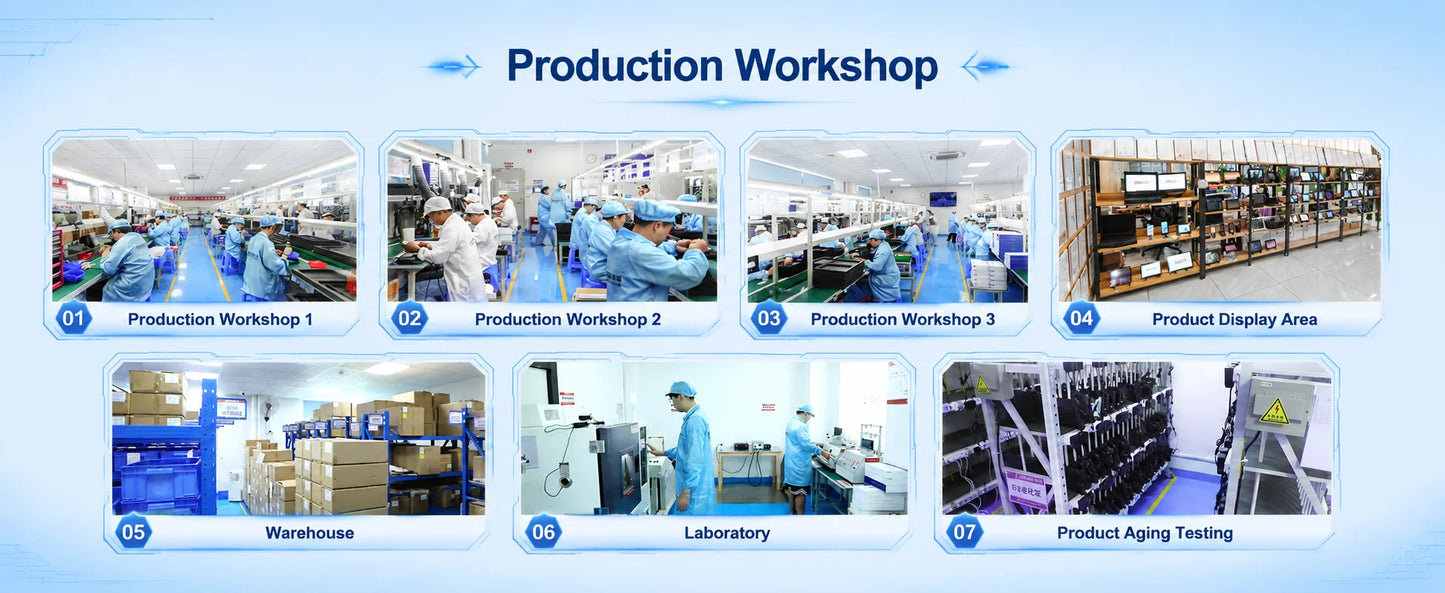

Production Workshop

Multi-Scenario Industrial Application

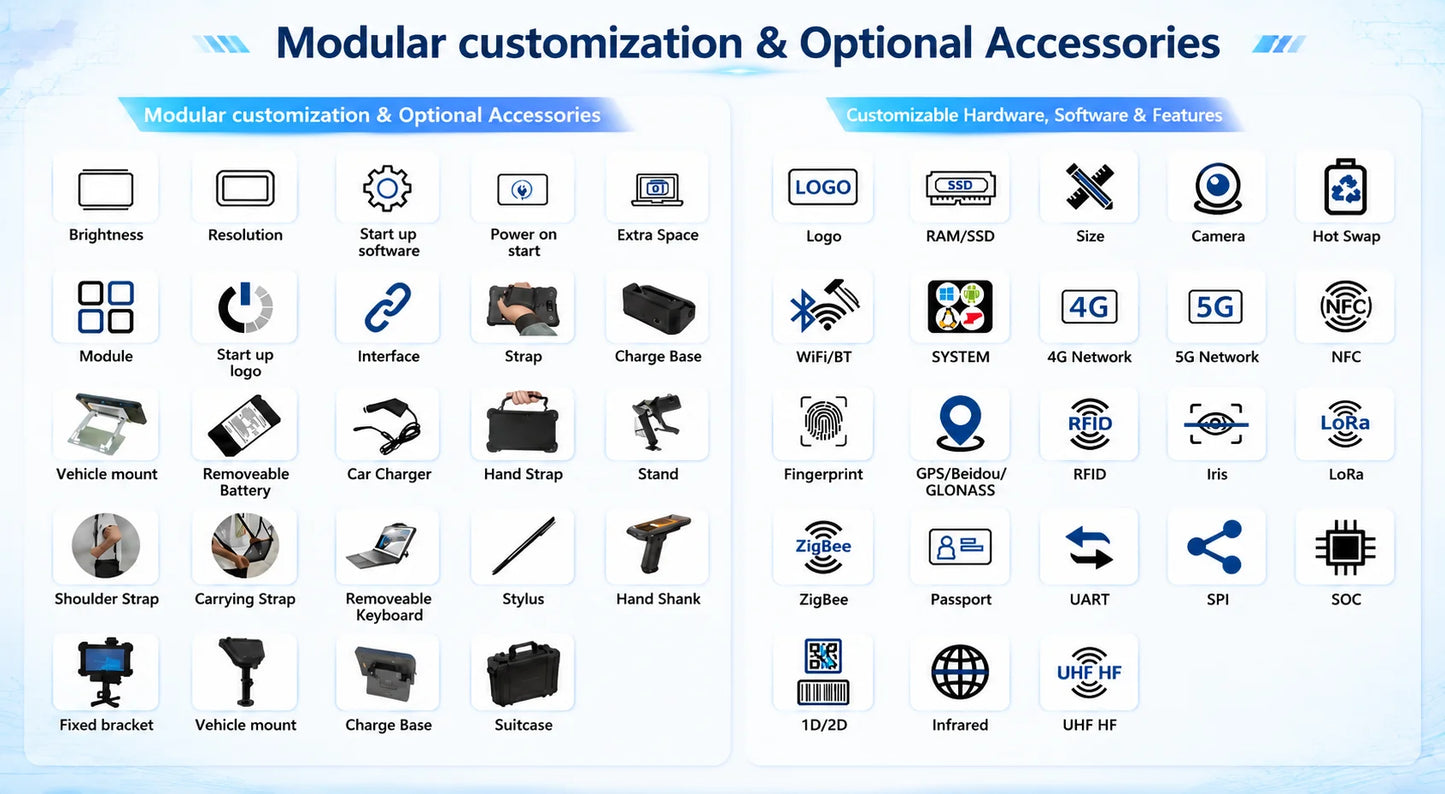

Modular Customization & Optional Accessories

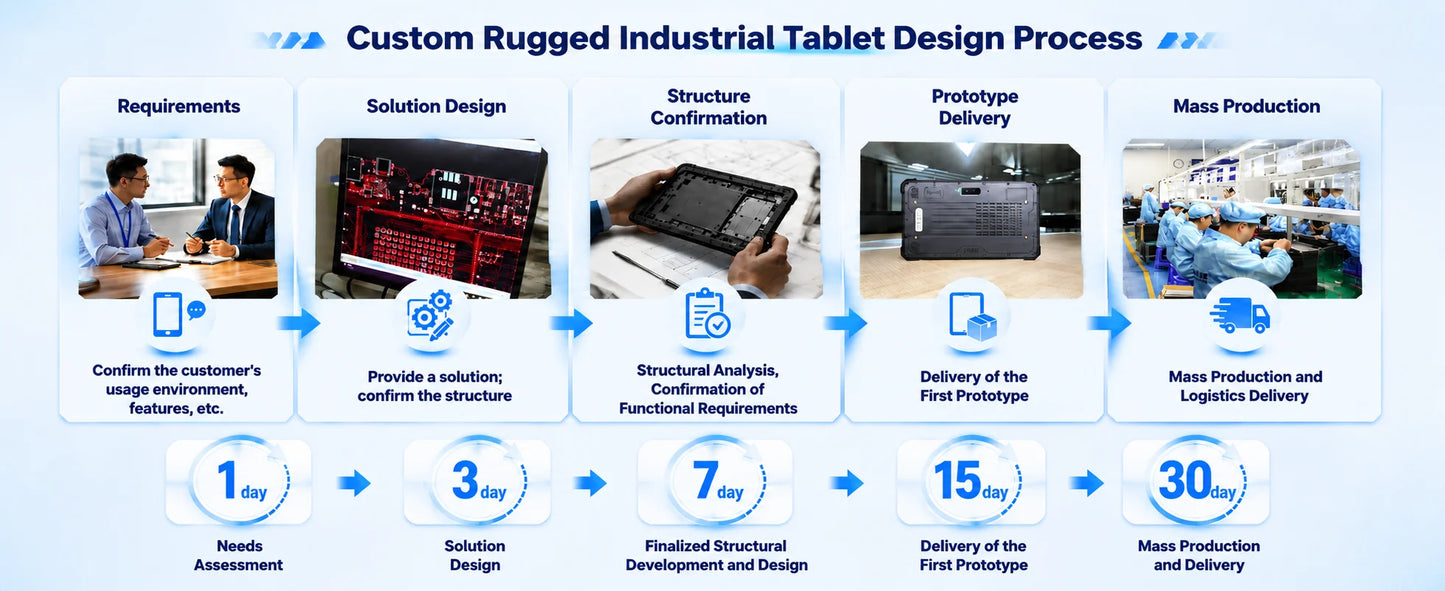

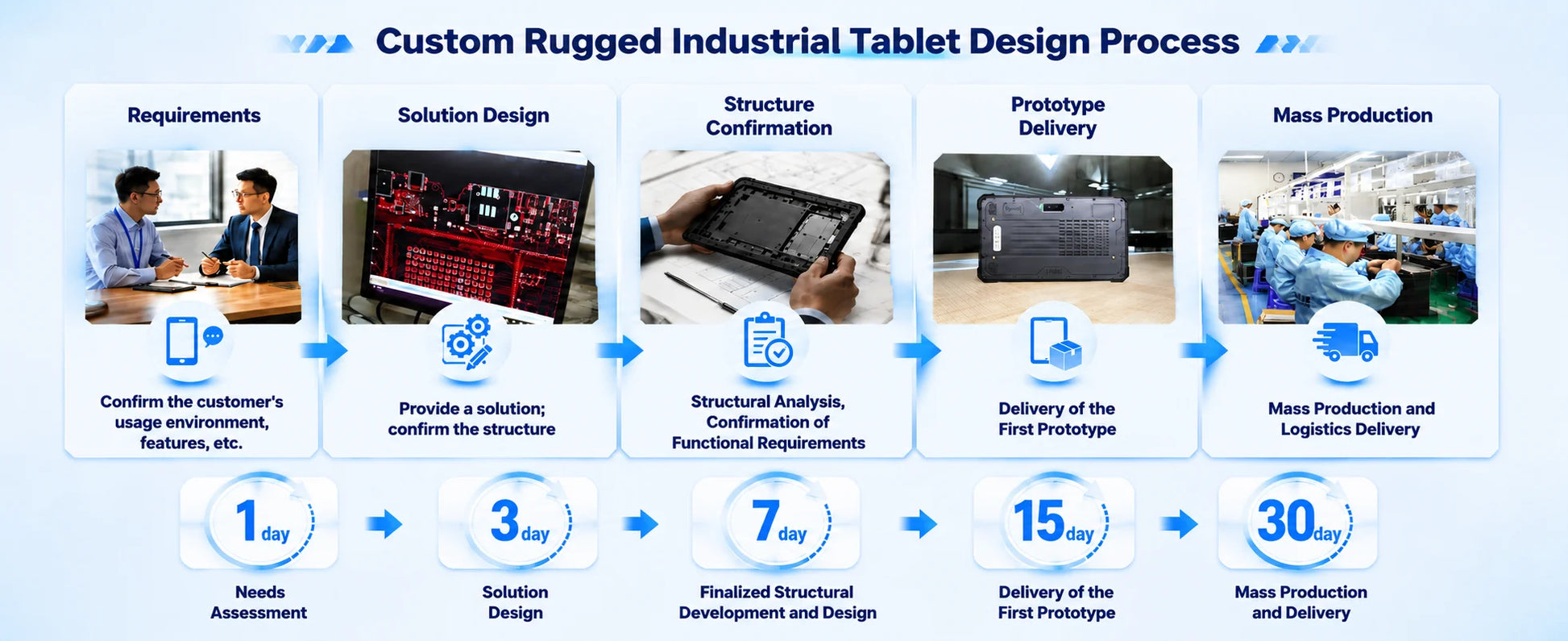

Custom Rugged Industiral Tablet Design Process

Frequently Asked Questions

1. Who is the A10ST-MT6771 for?

Existing deployments, mostly. If your industrial software is certified on Android 10, or you're replacing units in an MT6771-based fleet, this model lets you swap hardware without re-validating your software stack. For a new project with no legacy constraint, start with our MT8781 or MT6877 models instead.

2. Which display resolutions are available?

1280×800 and 1920×1200. Tell us which one your software was laid out for — resolution changes can break old app UIs, which is exactly the kind of re-validation this model exists to avoid.

3. Is the battery removable? Can it be hot-swapped?

Neither. The 10,000mAh pack is built in and sealed. A 20,000mAh version exists as a customized battery enclosure. If you need mid-shift battery swaps, the A10STX MT6771 (same platform, 15,400mAh removable, IP67) is the one to look at.

4. What are this platform's limits?

Two worth knowing up front: Bluetooth is 4.2 BLE, not 5.x; and the Type-C port doesn't do PD fast charging. If either matters to your deployment, the MT6769 version adds both.

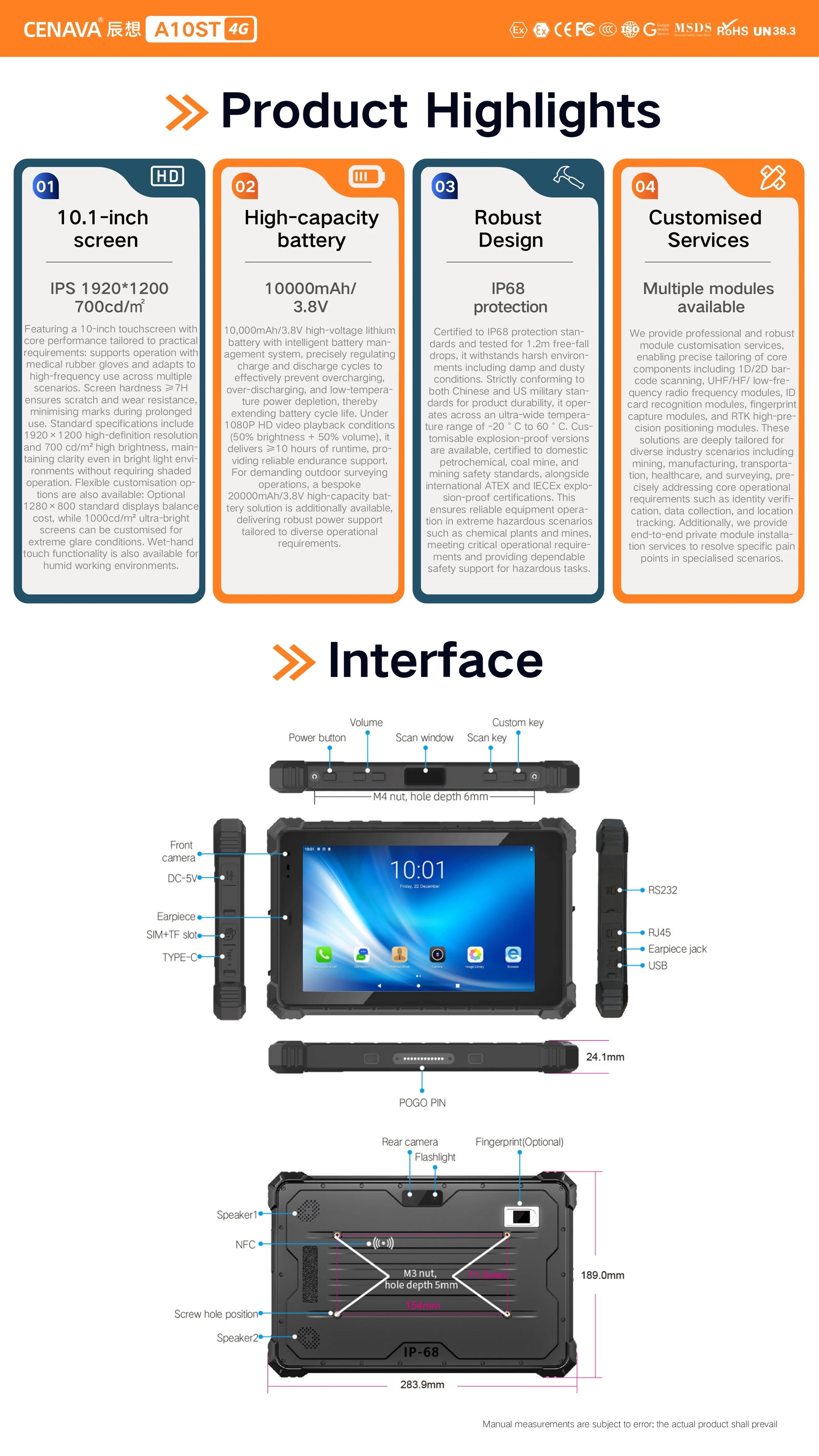

5. Which ports come standard?

A native RS232 on DB9 (not a USB adapter), 100M RJ45 Ethernet, Micro HDMI, USB 2.0 Type-C with OTG, USB 2.0 Type-A, 3.5mm audio, Micro SIM and a TF slot up to 256GB. The Ethernet port is 100M, not Gigabit.

6. What data-capture modules can be added?

NFC is standard. Options: N1 or N670 1D/2D scan engines, UHF RFID in 3m, 5m or 15m builds, and fingerprint readers in industrial or certified tiers. On the 15m UHF figure: that's the module's ceiling, not a guarantee. Real range depends on the tag, antenna and environment, so we'll want to know your tag type before confirming a build.

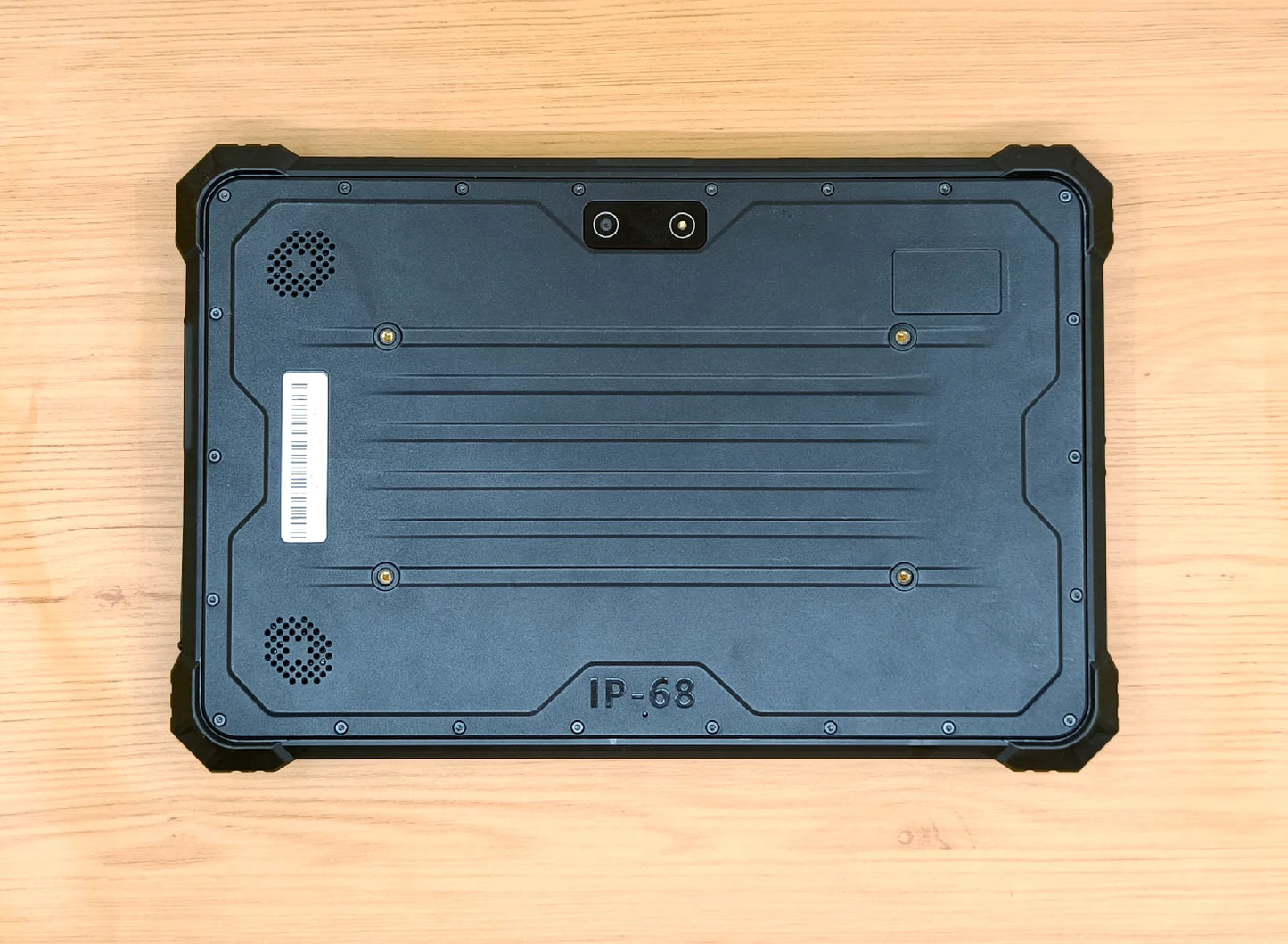

7. Is it really IP68?

Yes, with the sealed built-in battery. Custom modules can change the sealing — if your build includes a scanner or RFID, ask for the test report covering that exact configuration.
